Stacked filter housings

Stacked Filters (Lenticular Filters) are used in a wide field of industrial, pharmaceutical, cosmetical filtration application also in food and beverage. This kind of filtration is mainly used for particle filtration, clarification and decolorization.

The high-end filter housings CVM for lenticular filters/stacked filters from Sefiltec are available in 8-inch, 12-inch and 16-inch diameter up to 4 filter height, depending on application and flow-rate. Therefore, the housings are available as single filter up to 4 filters housings. The center-post is also interchangeable for use of different quantities of stacked filters in the housing.

The housings are available in wide range of materials of construction as stainless steel 1.4404 /V4A / 316L and Hastelloy C22 (2.4602). The standard surface is acid treatment but also mechanical and electro-polished versions are available. The required gaskets are in different materials e.g. Buna, EPDM, Viton and FEP-encapsulated Silicone. The size and type for inlet and outlet are according your needs. Additional drains and vents are available upon request.

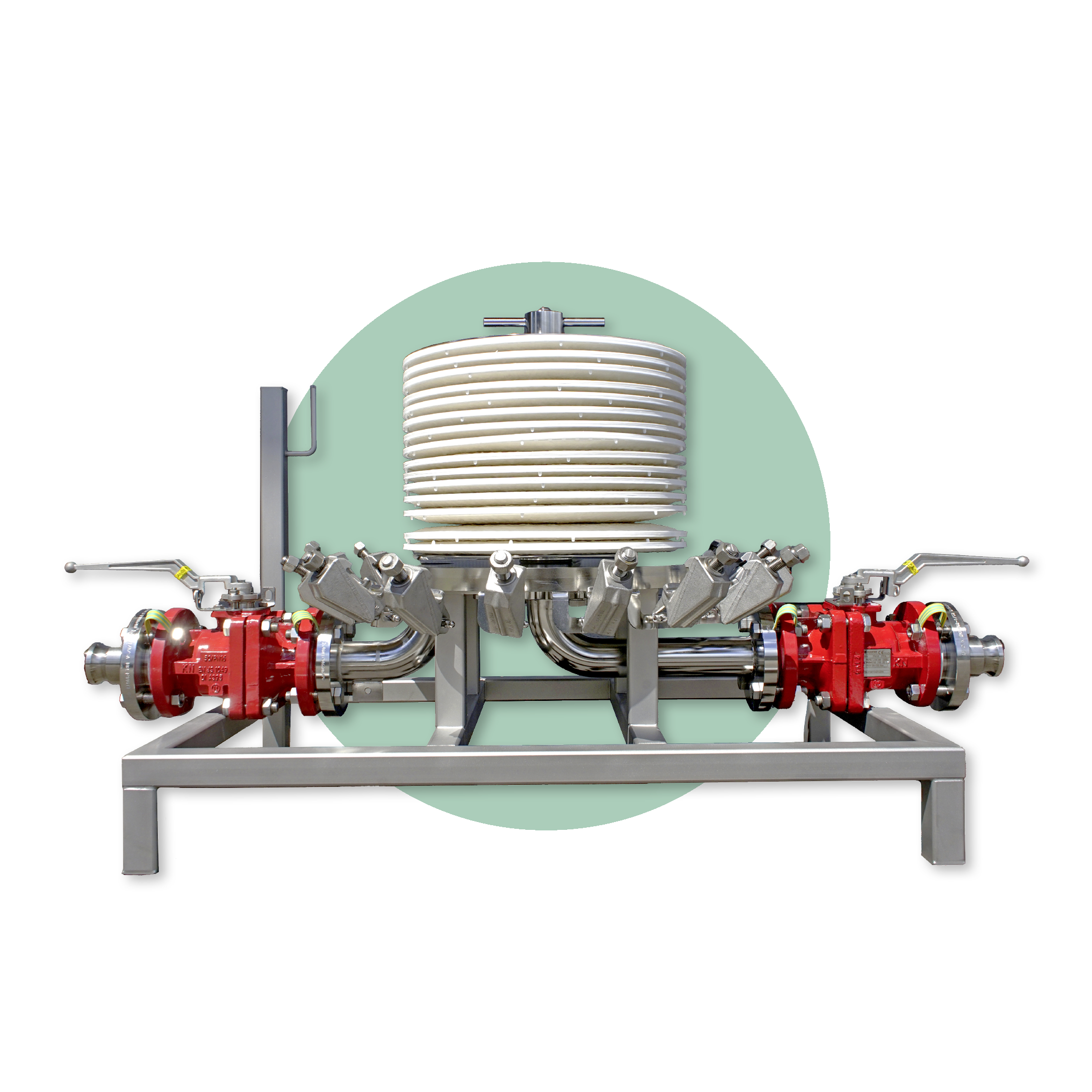

The housings will be designed according your project. They are also available with frame and tank for a clean and mobile solution. Please get in contact with us for any support.
